Oil Quality Sensors

BFV-4

High-Viscosity Oil Sensor

BFV-4 High-Viscosity Oil Sensor with catalog-listed configuration options.

BFV-4 High-Viscosity Oil Sensor product photograph
RANGEDensity 600 kg/m³~1,500 kg/m³; dynamic viscosity 0.5 cP~400 cP; measured temperature 0~100°C
OUTPUTRS485 Modbus RTU; two 4~20 mA channels shown in wiring diagram
MATERIALAll-stainless-steel construction
PROTECTIONIP67

Product overview

Application-focused measurement and switching.

The current catalog lists selection data for the BFV-4 High-Viscosity Oil Sensor. Confirm the exact ordered configuration and controlled rating before use.

Configuration note

Ratings, materials, interfaces, and approvals can vary by ordered configuration. CASCED INC confirms the controlled specification before order acceptance.

Key features

  • Typical accuracy: Density 2%; viscosity 2%; temperature 0.5°C
  • Response time: Less than 2 s
  • Supply voltage: 24 VDC ±20%

Technical specifications

Key data for product selection.

Typical accuracy
Density 2%; viscosity 2%; temperature 0.5°C
Response time
Less than 2 s
Supply voltage
24 VDC ±20%
Typical repeatability
Density 0.5%; viscosity 0.5%; temperature 0.1°C

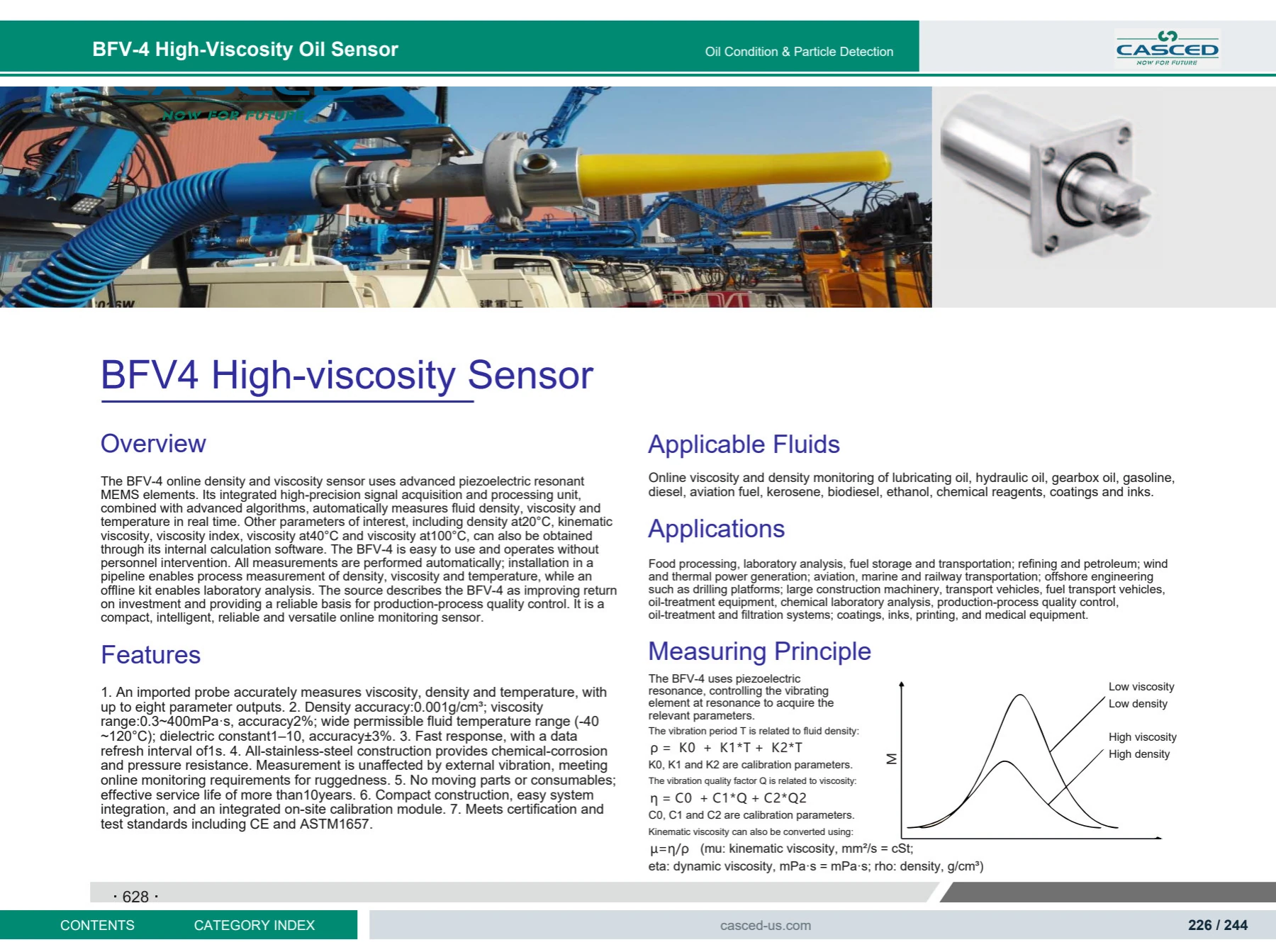

Further dimensions, connection diagrams and ordering details are in the current catalog, full pages 226–227. Open the matching English PDF pages. Published values and options are configuration dependent. Confirm the selected configuration before use.

Downloads

Technical documentation

View in your browser or download a copy for engineering and sourcing review.

Typical applications

Engineered for real industrial systems.

01Application review based on supplied operating conditions
02OEM and industrial equipment projects
