Point Level Sensors

GNU-172 Series

High-Strength Optical Level Sensor

GNU-172 Series High-Strength Optical Level Sensor with catalog-listed configuration options.

GNU-172 Series High-Strength Optical Level Sensor product photograph
OUTPUTTransistor output; maximum sink current 40 mA, maximum output 30 VDC
MATERIALPolysulfone resin housing; fluorocarbon O-ring; overmolded TPE electronics

Product overview

Application-focused measurement and switching.

The current catalog lists selection data for the GNU-172 Series High-Strength Optical Level Sensor. Confirm the exact ordered configuration and controlled rating before use.

Configuration note

Ratings, materials, interfaces, and approvals can vary by ordered configuration. CASCED INC confirms the controlled specification before order acceptance.

Key features

  • Operating pressure: 0~250 PSI (0~17 bar), maximum
  • Operating temperature: -40°F~+230°F (-40°C~+110°C)
  • No-load current: 4 mA at 5 VDC; 10 mA at 12 VDC

Technical specifications

Key data for product selection.

Operating pressure
0~250 PSI (0~17 bar), maximum
Operating temperature
-40°F~+230°F (-40°C~+110°C)
No-load current
4 mA at 5 VDC; 10 mA at 12 VDC
Repeatability
±1 mm

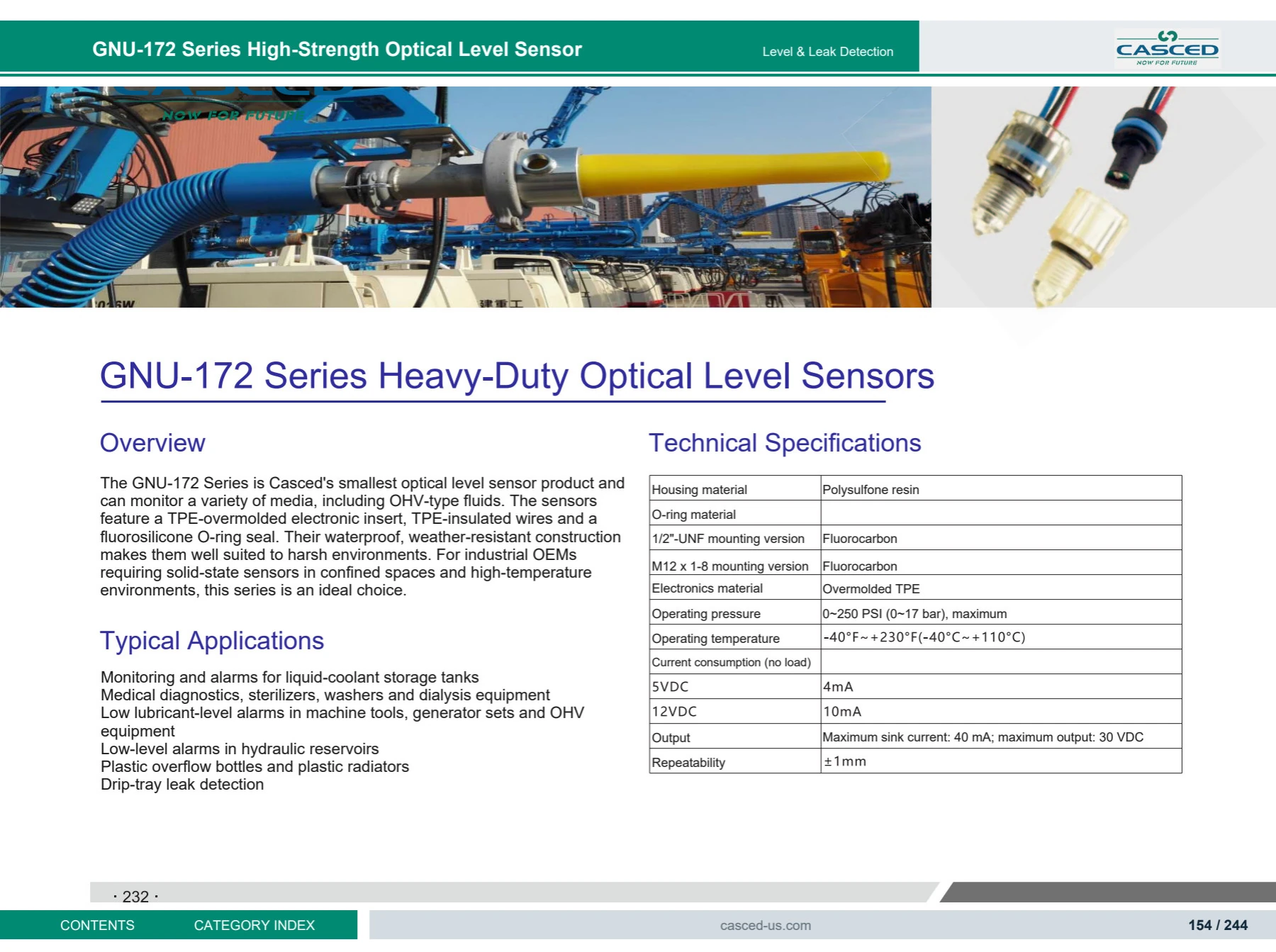

Further dimensions, connection diagrams and ordering details are in the current catalog, full pages 154–155. Open the matching English PDF pages. Published values and options are configuration dependent. Confirm the selected configuration before use.

Downloads

Technical documentation

View in your browser or download a copy for engineering and sourcing review.

Typical applications

Engineered for real industrial systems.

01Application review based on supplied operating conditions
02OEM and industrial equipment projects

Contact technical sales

Share your operating conditions, interfaces, quantity, and documentation requirements.
