Mechanical Pressure Switches

PKAPS24 / PKAPF24

Pressure Switch

PKAPS24 / PKAPF24 Pressure Switch with catalog-listed configuration options.

PKAPS24 / PKAPF24 Pressure Switch product photograph
OUTPUTSnap-action switch; SPST NO, SPST NC or SPDT contact configurations
MATERIALHNBR diaphragm; zinc-plated steel housing
PROTECTIONIP67

Product overview

Application-focused measurement and switching.

The current catalog lists selection data for the PKAPS24 / PKAPF24 Pressure Switch. Confirm the exact ordered configuration and controlled rating before use.

Configuration note

Ratings, materials, interfaces, and approvals can vary by ordered configuration. CASCED INC confirms the controlled specification before order acceptance.

Key features

  • Electrical rating: 5 A (12/24 VDC, 125/250 VAC); optional 10 A or gold-plated contacts
  • Temperature range: -20°F~248°F (-29°C~120°C)
  • Maximum overpressure: 15000 PSI (1034 BAR)

Technical specifications

Key data for product selection.

Electrical rating
5 A (12/24 VDC, 125/250 VAC); optional 10 A or gold-plated contacts
Temperature range
-20°F~248°F (-29°C~120°C)
Maximum overpressure
15000 PSI (1034 BAR)
Hysteresis
6~25% of set point
Mechanical life
1 million cycles at 2500 PSI (172 BAR)

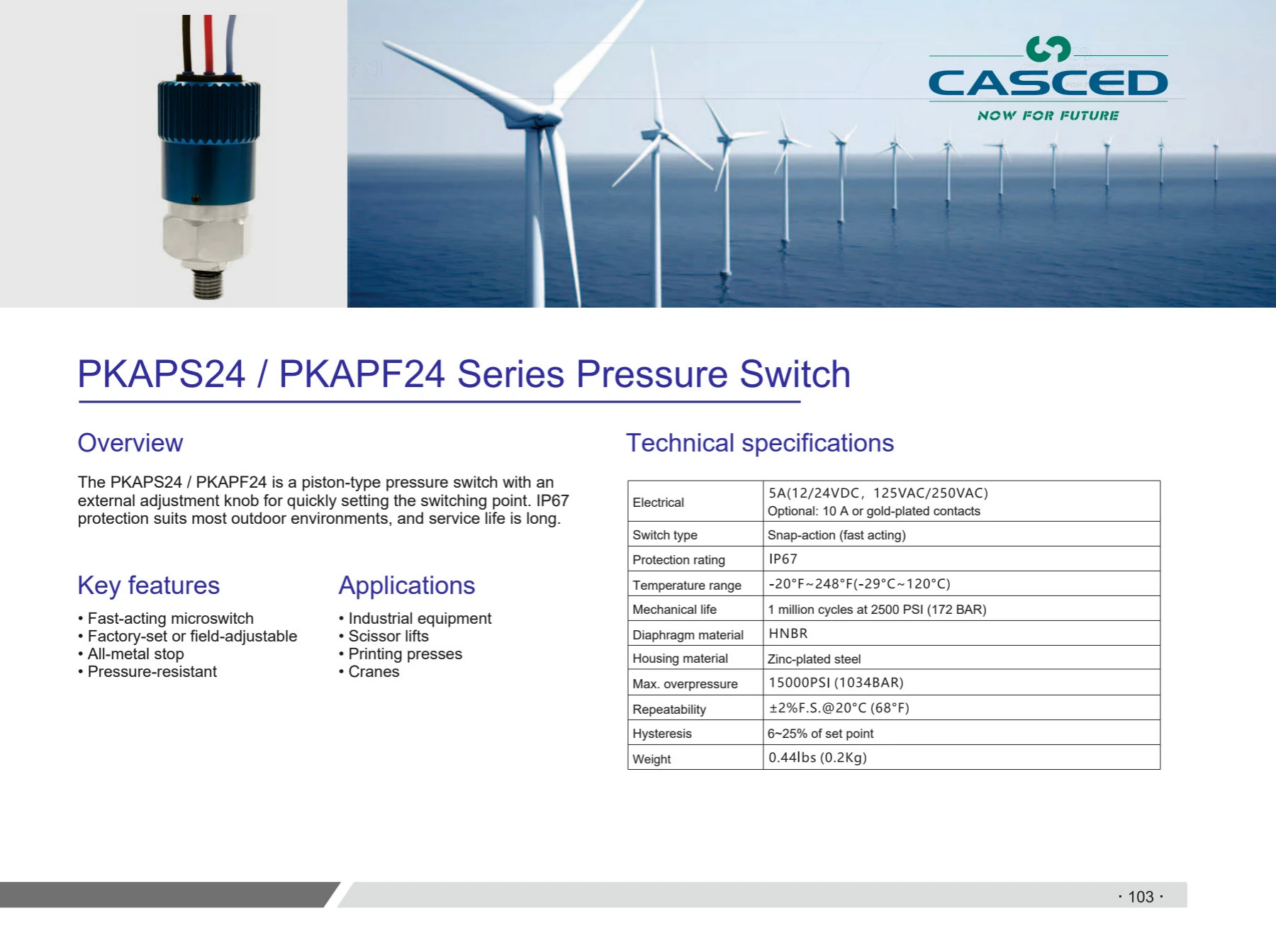

Further dimensions, connection diagrams and ordering details are in the current catalog, full pages 52–53. Open the matching English PDF pages. Published values and options are configuration dependent. Confirm the selected configuration before use.

Downloads

Technical documentation

View in your browser or download a copy for engineering and sourcing review.

Typical applications

Engineered for real industrial systems.

01Application review based on supplied operating conditions
02OEM and industrial equipment projects
