Impeller Flow Sensors

TP73F Series

Impeller Flow Sensor

TP73F Series Impeller Flow Sensor with catalog-listed configuration options.

TP73F Series Impeller Flow Sensor product photograph
RANGEFlow velocity 0.15~6 m/s; pipe size DN10 mm~DN32 mm
OUTPUTHall-effect pulse output; PNP/NPN open collector
MATERIALPVDF paddlewheel; sensor-body options include POM, aluminum and stainless steel
PROTECTIONIP65

Product overview

Application-focused measurement and switching.

The current catalog lists selection data for the TP73F Series Impeller Flow Sensor. Confirm the exact ordered configuration and controlled rating before use.

Configuration note

Ratings, materials, interfaces, and approvals can vary by ordered configuration. CASCED INC confirms the controlled specification before order acceptance.

Key features

  • Supply voltage: DC 5 V~DC 24 V
  • Repeatability / linearity: ±0.5% FS / ±1.0% FS
  • Minimum Reynolds number: 4,500

Technical specifications

Key data for product selection.

Supply voltage
DC 5 V~DC 24 V
Repeatability / linearity
±0.5% FS / ±1.0% FS
Minimum Reynolds number
4,500
PVDF body pressure/temperature
14.0 bar at 25°C; 1.7 bar at 100°C

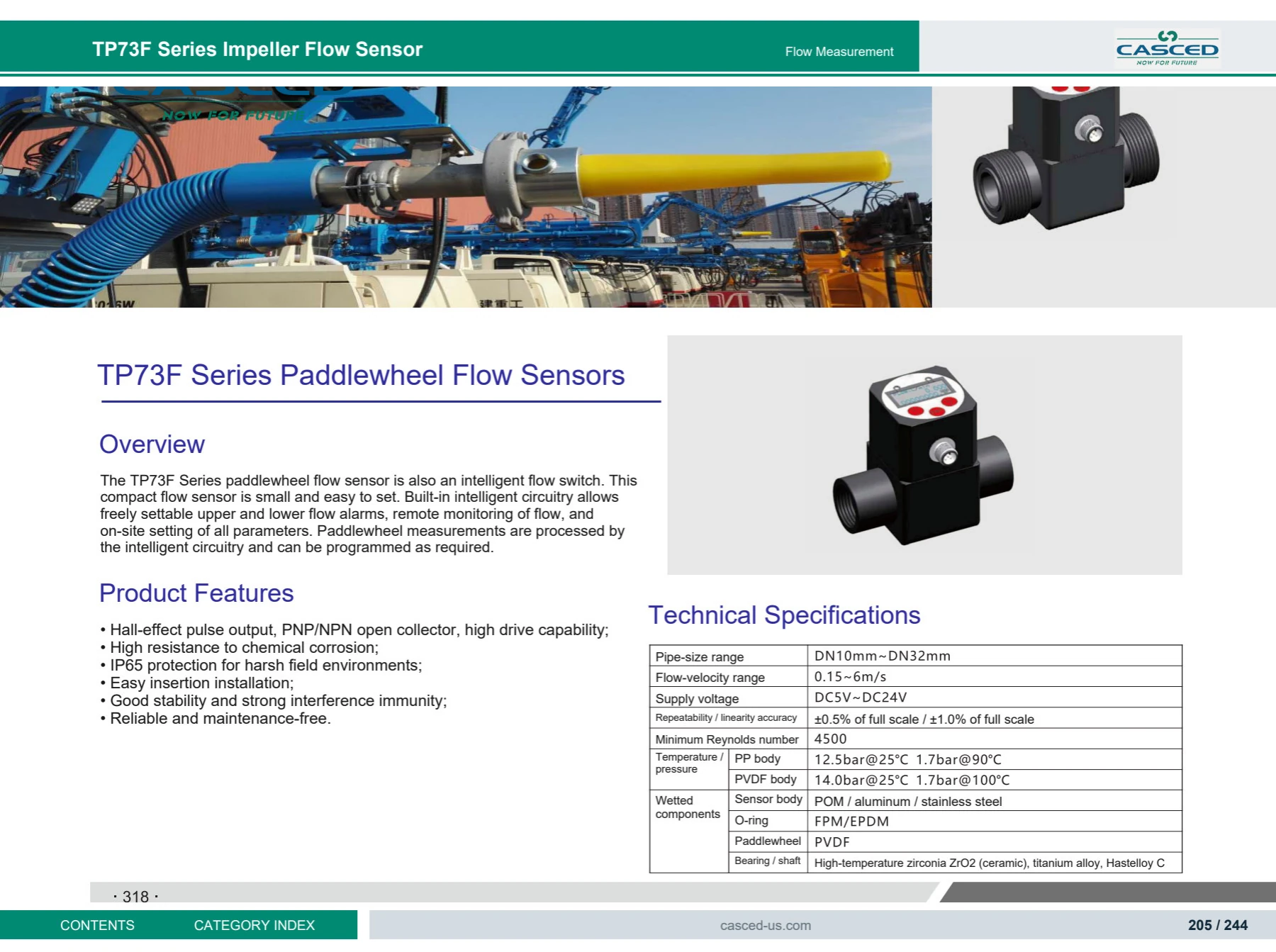

Further dimensions, connection diagrams and ordering details are in the current catalog, full pages 205–206. Open the matching English PDF pages. Published values and options are configuration dependent. Confirm the selected configuration before use.

Downloads

Technical documentation

View in your browser or download a copy for engineering and sourcing review.

Typical applications

Engineered for real industrial systems.

01Application review based on supplied operating conditions
02OEM and industrial equipment projects

Contact technical sales

Share your operating conditions, interfaces, quantity, and documentation requirements.
