Pressure Transmitters

5424 Series

Flush-Diaphragm Pressure Transmitter

5424 Series Flush-Diaphragm Pressure Transmitter with catalog-listed configuration options.

5424 Series Flush-Diaphragm Pressure Transmitter product photograph
RANGEListed standard pressure ranges: 1, 8, 10, 16, 30, 50, 100, 250, 400, 500, 600, 1000 bar
OUTPUT4~20 mA; 1~5 V; 0~4.5 V; 0~5 V; 0~10 V options
MATERIAL316L stainless steel and fluororubber at the wetted face; seal material is configuration-dependent
PROTECTIONIP67 (M12×1 connector outlet); IP68 (cable outlet)

Product overview

Application-focused measurement and switching.

The current catalog lists selection data for the 5424 Series Flush-Diaphragm Pressure Transmitter. Confirm the exact ordered configuration and controlled rating before use.

Configuration note

Ratings, materials, interfaces, and approvals can vary by ordered configuration. CASCED INC confirms the controlled specification before order acceptance.

Key features

  • Pressure reference: Gauge pressure
  • Process connections: G1; R1; G3/4; G1/2; M20×1.5; flange mounting; or custom
  • Measured media: Gas, oil, water and viscous liquids; media must not corrode 316 stainless steel

Technical specifications

Key data for product selection.

Pressure reference
Gauge pressure
Process connections
G1; R1; G3/4; G1/2; M20×1.5; flange mounting; or custom
Measured media
Gas, oil, water and viscous liquids; media must not corrode 316 stainless steel
Operating voltage
12~32 VDC (standard products)
Overall accuracy
±0.5% FS
Operating temperature
-30°C~+85°C
Media temperature
-30°C~+100°C

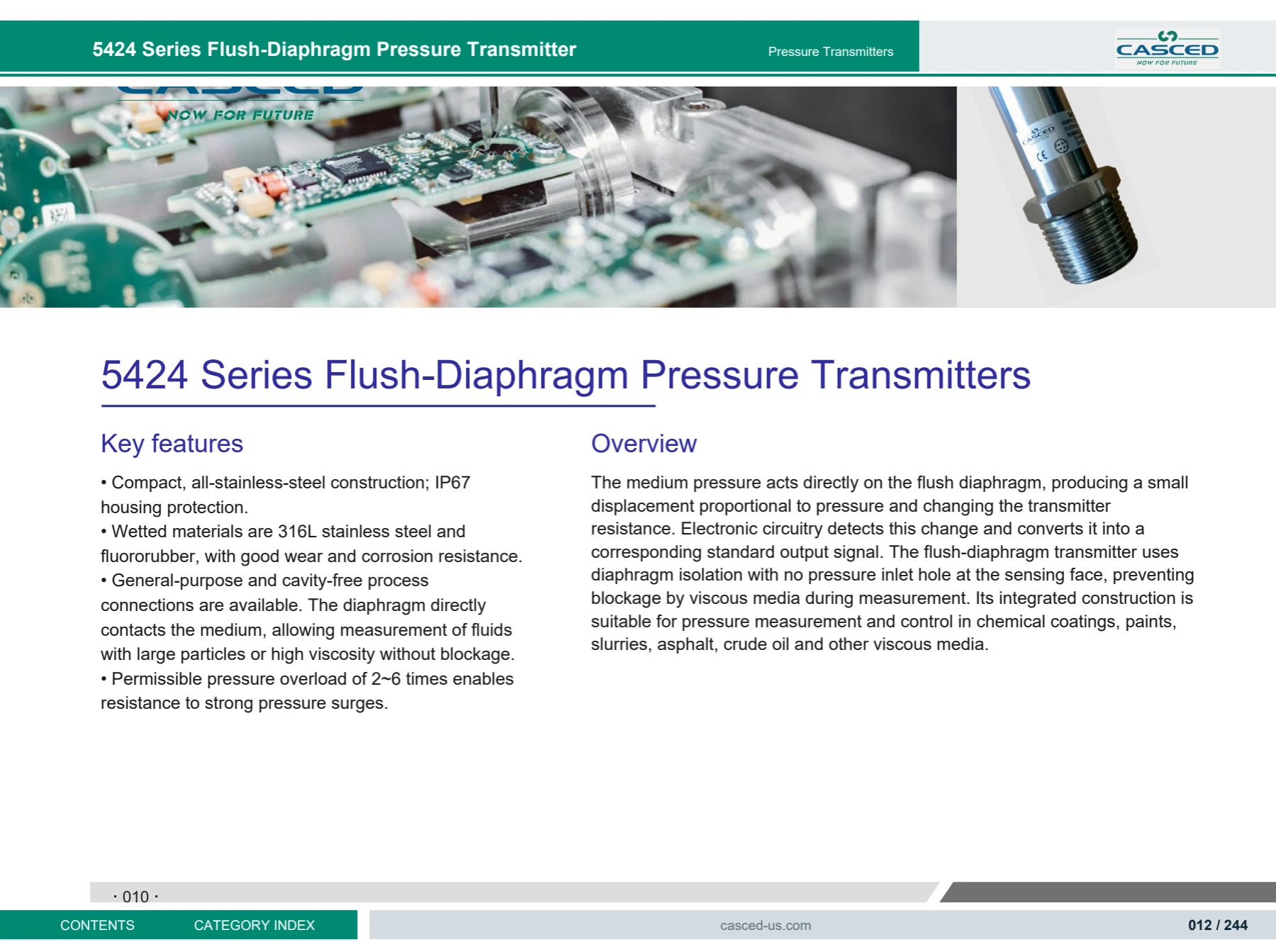

Further dimensions, connection diagrams and ordering details are in the current catalog, full pages 12–14. Open the matching English PDF pages. Published values and options are configuration dependent. Confirm the selected configuration before use.
