Temperature and Humidity Transmitters

HTA200 Series

OEM Temperature & Humidity Transmitter

HTA200 Series OEM Temperature & Humidity Transmitter with catalog-listed configuration options.

HTA200 Series OEM Temperature & Humidity Transmitter product photograph
RANGERelative humidity 0~100% RH; temperature -40°C~+120°C
OUTPUT4~20 mA (2-wire), 0~10 V, 0~5 V or RS485 Modbus RTU, depending on configuration
MATERIALPC housing; Ø14 mm stainless-steel probe
PROTECTIONIP67

Product overview

Application-focused measurement and switching.

The current catalog lists selection data for the HTA200 Series OEM Temperature & Humidity Transmitter. Confirm the exact ordered configuration and controlled rating before use.

Configuration note

Ratings, materials, interfaces, and approvals can vary by ordered configuration. CASCED INC confirms the controlled specification before order acceptance.

Key features

  • Humidity accuracy: ±2% RH at 20~80% RH
  • Temperature accuracy: ±0.3°C at 5°C~60°C
  • Supply voltage: 10...30 VDC

Technical specifications

Key data for product selection.

Humidity accuracy
±2% RH at 20~80% RH
Temperature accuracy
±0.3°C at 5°C~60°C
Supply voltage
10...30 VDC
Enclosure operating temperature
-40...+85°C; 0...95% RH, non-condensing

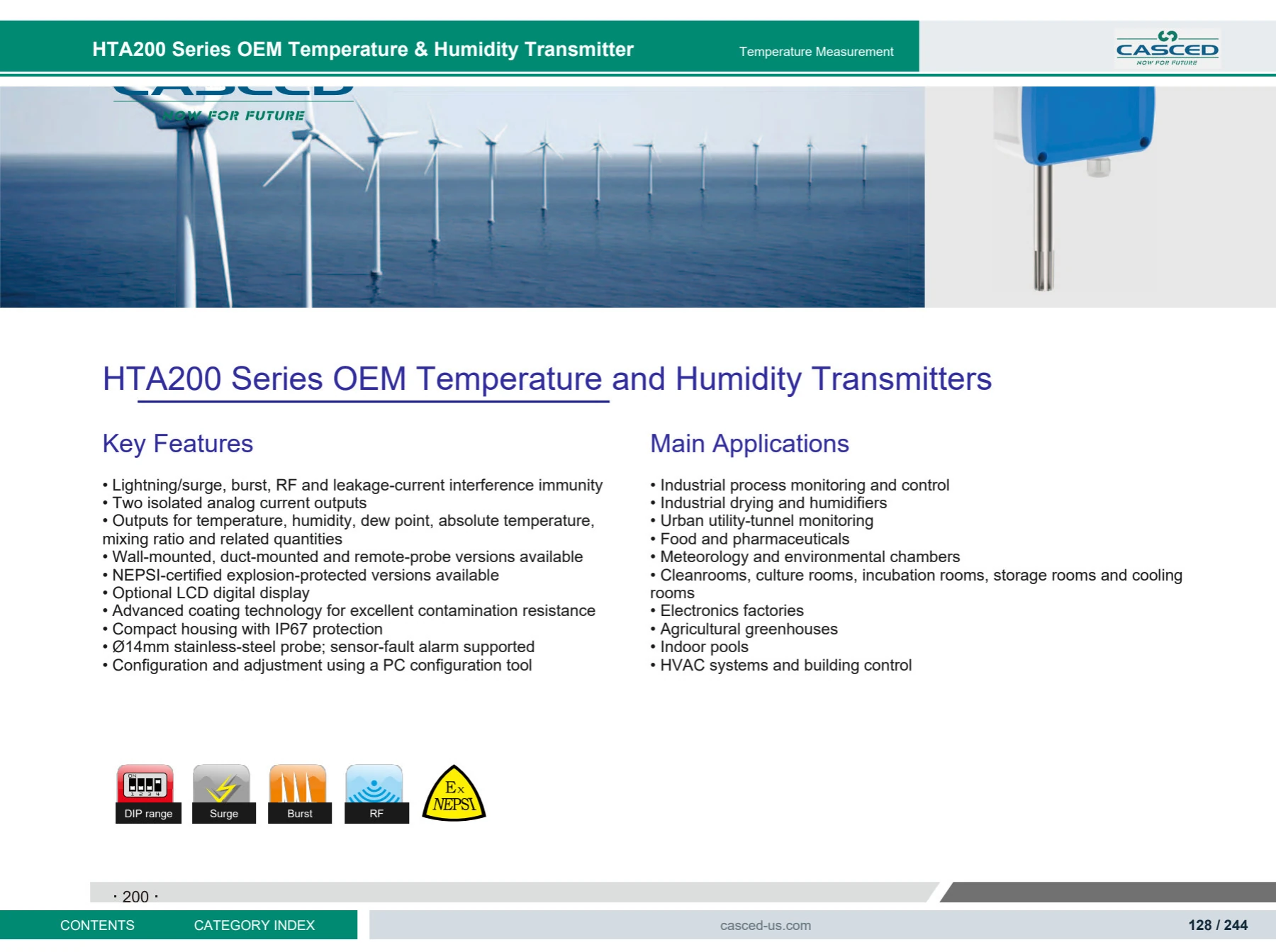

Further dimensions, connection diagrams and ordering details are in the current catalog, full pages 128–131. Open the matching English PDF pages. Published values and options are configuration dependent. Confirm the selected configuration before use.

Downloads

Technical documentation

View in your browser or download a copy for engineering and sourcing review.

Typical applications

Engineered for real industrial systems.

01Application review based on supplied operating conditions
02OEM and industrial equipment projects
